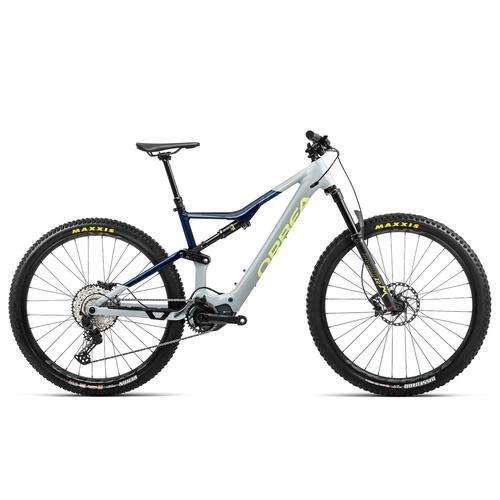

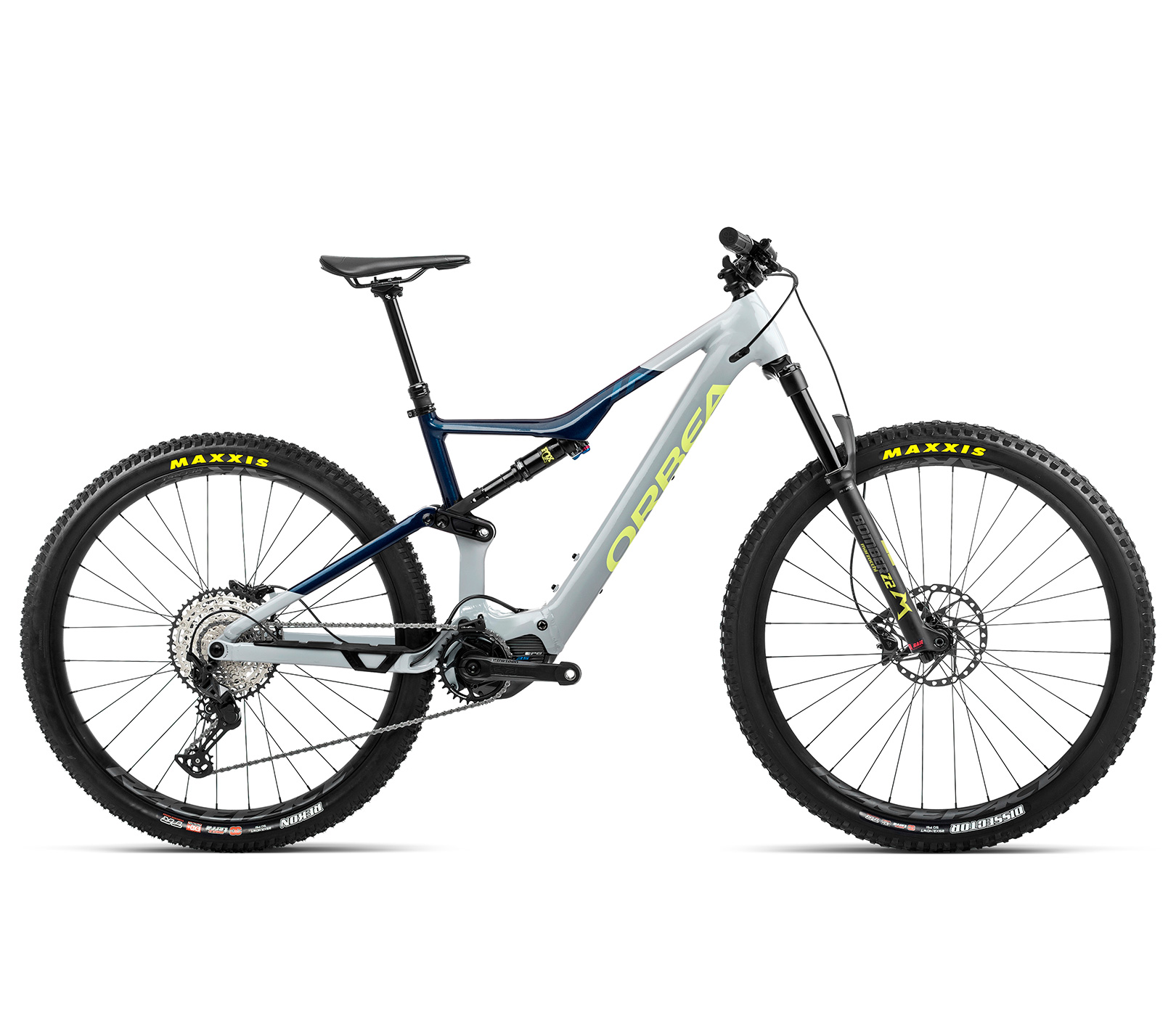

Frame Orbea Rise Hydro 2022 140mm travel 29" Boost 12x148
-
Shock Fox Float DPS Performance 3-Position Evol custom tune 210x55mm
-
Fork Marzocchi Bomber Z2 140 QR15x110
-
Chainring e*thirteen e*spec Direct Mount 32T Boost
-
Crank e*thirteen Plus Alu
-
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
-
Handlebar OC1 35mm 12mm Rise 780mm
-
Stem OC1 3D Forged 35mm interface 7º
-
Shifters Shimano Deore M6100
-
Brakes Shimano MT410 Hydraulic Disc
-
Rotors 180mm Front /180mm Rear
-
Cassette Shimano CS-M7100 10-51t 12-Speed
-
Rear derailleur Shimano SLX M7100 SGS Shadow Plus
-
Chain Shimano M6100
-
Wheels Race Face AR 30c Tubeless Ready
-
Tyres Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
-
Tyres Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
-
Seatpost OC Mountail Control MC20, 31.6mm, Dropper
-
Seatpost Lever OC Horizontal
-
Saddle Fizik Taiga S-alloy rail
-
Chainguide Orbea Rise chainguide
-
Motor Shimano EP8-RS
-
Battery Orbea Internal 540Wh (Optional 252Wh Range Extender)
-
RANGE EXTENDER
Consult other components
-
Display Shimano SC-E7000
-
CHARGER Orbea Smart Charger (42V-4A)
-
Remote Shimano E7000 switch unit for assist
-
Front Wheel Axle
